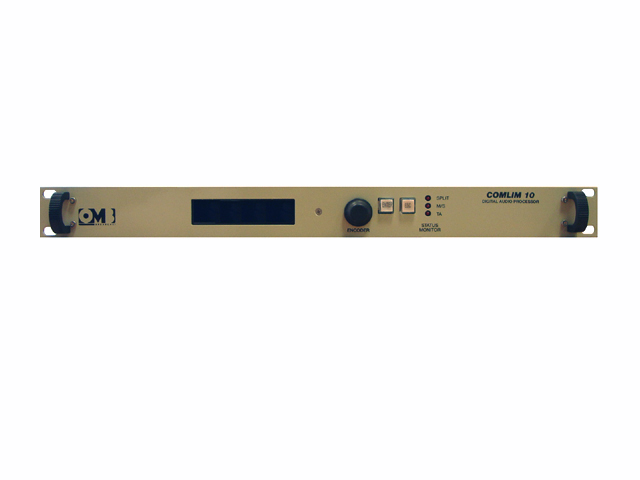

The COM LIM 10 audio processor is the combination of professional Digital Stereo generator (with more than 60dB channel separation) and a high-dynamic adjusted limiter, with stop band rejection bigger than 90dB above 75KHz. Furthermore it includes a 3-band equalizer.
All these advanced characteristics, makes the COM LIM 10 an equipment that provides a whole range of professional features, really useful in all radio studios. It also includes RDS/RBDS digital encoder and optionally digital audio input. Programming, visualization and control trough LCD display.
GENERAL FEATURES
Weight 4.5Kg. approximately Dimensions 1RU; 352x483x44mm AC Rate 220VAC / 110VAC Preset Curves 30, factory programmed
ANALOG STEREO AUDIO INPUT Conversion 24bit Connector Type XLR Female el. Balanced Max. Input Level +20dBu Level Range -12dBu to 12dBu (1dB step) Impedance 600Ω / 10Kω EMI -suppressed AGC Range ±20dB (Sensitivity Relative)
DIGITAL AUDIO INPUT (optional) Connector Type XLR el. Bal. + optical Tos link Formats AES/EBU, SPDIF Sampling Rates 32KHz / 44.1KHz / 48KHz / 96KHz Configuration Automatic selection and jitter correction Input sensitivity 200mVpp AGC Range 0 to -20dBFs
AGC OPERATION AGC Speed 0 to 6 dB/sec (adjustable - 0.2dB step) AGC Hold time Selectable, from 0 to 3 sec. AGC Max Gain Selectable 8, 10, 12, 15 or 20dB
PROCESSING Nº of Bands 3 (Bass, Mid, High) Nº of Presets 30
BASS Compress. THR: related to the chosen Preset ATCK Time: 80ms, REL Time: 250ms. Compr. Ratio: 1: INF
MID Compressor THR: related to the chosen Preset ATCK Time: 30ms, REL Time: 90ms Compr. Ratio: 1: INF
HIGH Compress. THR: related to the chosen Preset ATCK Time: 10ms, REL Time: 50ms. Compr. Ratio: 1: INF
Broadband Limiter
ATCK Time: 5ms, REL Time: 50ms Applied to high frequencies band
Dynamic expander (noise gate)
Gate threshold adjustable between -51dB and -80dB Expansion ratio 2:1 (fixed)
STEREO AUDIO OUTPUT (ST version only) Connector Type XLR male el. Balanced Conversion 24bit Impedance 600Ω / 10kΩ EMI -suppressed Level -10dBm to +14dBm (0.5 dBm Step)
