Dual 15-Band Constant Q Graphic EQ

รายละเอียด

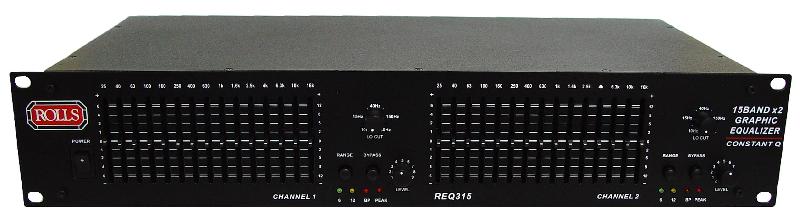

REQ315 Graphic Equalizer The REQ315 is a two channel graphic equalizer utilizing constant Q filtering. The unit is designed for the sound professional that requires precise sound shaping control. All filters are true constant "Q" type, with no broadening near the "flat" setting. High slew-rate circuitry throughout the signal path results in clean, quiet, transparent sound.   REQ315 Graphic Equalizer Two channels with 15 bands of constant Q equalization each. XLR and 1/4" inputs and outputs. Low cut filters. 6/12 dB Boost/Cut Range switch. Passive bypass. Specifications Equalizer: Channels: 2 Bands: 15 Frequency Response: 20Hz - 20kHz Accuracy: 5% Center Frequency Range: +6dB or +12 dB (Switch selectable) Inputs: Type: Active Balanced/Unbalanced Connectors: XLR, 1/4” TRS Impedance: 12k Ohms Maximum Level +22 dB (Balanced), +15dB (Unbalanced) Outputs: Type: Electronically Balanced Connectors: XLR, 1/4” TRS Impedance: 600 Ohms Maximum Level: +22 dB (Balanced), +15dB (Unbalanced) RFI Filters: Yes Passive Bypass Switches: Yes Overload LED Threshold: 3dB below clipping Low Cut Filter: 10 - 250Hz, 12dB/Octave Frequency Response: 20Hz - 20kHz, +0.5dB THD + Noise: 0.01% (20Hz - 40kHz) S/N Ratio: 110dB below Max level (A weighted) Equivalent Input Noise: -95dB (20kHz noise bandwidth) Dimensions: 3.5”H x 19”W x 8.5”D
