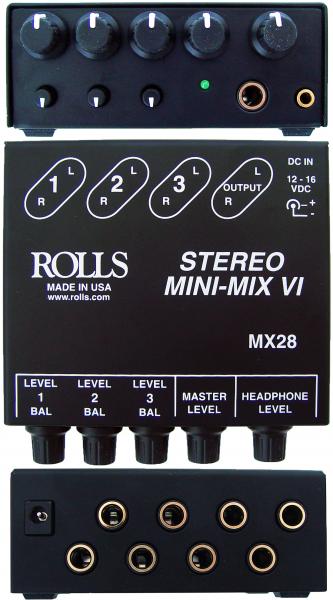

The MX28 Stereo MINI-MIX VI
The MX28 is a three-channel true stereo line mixer. Each channel has an individual 1/4" input for the right and left sides, and the outputs are individual right and left 1/4" jacks.
Each channel has a level and pan (balance) control. The Master Level controls the output volume and the Headphone Level controls the level to the two headphone outputs.
The MX28 Stereo MINI-MIX VI
3: Stereo 1/4” Stereo Inputs
True stereo 1/4” outputs, unbalanced
Two Headphone Outs (1/4” and 3.5mm)
Pan control for each channel
Specifications
Input Impedance: 10K Ohms
Output Impedance: 100 Ohms
Max Gain: +27 dBV
Max Input Level: +30 dBV
Max Output Level: +13 dB
Frequency Response: 20Hz - 20kHz +/- 1 dBV
THD + Noise: <.005%
Power: 12 VDC 150 mA adapter (center negative)
Size: 4.25" x 1.75" x 4.5" (WxHxD)
Weight: 1.2 lbs. (.49 Kg)
