Mix Mate 1/2 Rack Mic/Source Mixer

รายละเอียด

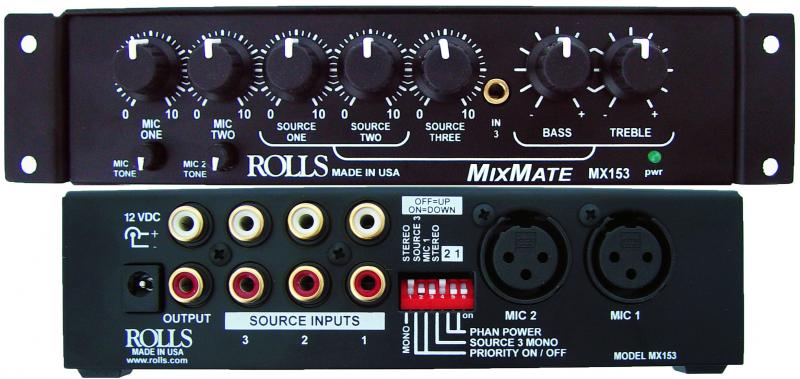

MX153 Mix Mate The MX153 is a one-half rack space, two microphone and three stereo source mixer. The unit provides a compact and efficient way to mix sources such as AM/FM tuners, CD players, and video players with dynamic or condenser microphones. Applications include background music and paging for small clubs, churches, schools, restaurants, etc. Each microphone channel has a Level and Tone control. Sources One and Two have Level adjustments and pass through combined Bass and Treble controls. Source Three has a Level adjustment only. The Microphone inputs are balanced XLR jacks, all Source inputs are stereo RCA except for the front 1/8 jack on CH3 for an MP3 player, etc. The main output is stereo RCA. An included 12VDC adapter (Rolls PS27) provides power to the unit. A series of six DIP switches provide important features to the MX153. Two switches apply the 12VDC of phantom power to the individual Microphone Inputs. A second switch sums the program material of Source Three to mono, and a third sums the overall output to mono. Another switch provides priority ducking to Source Three input allowing that channel to mute the other source inputs for use with a jukebox. The final switch configures Microphone Input One as a paging input, ducking the other microphone and Sources One and Two.   MX153 Mix Mate Two Mic inputs with available phantom power Treble or Bass cut controls for each mic Three stereo source inputs Bass and Treble controls on source 1 & 2 Signal muting (ducking) on mic 1 & source 3 Switchable Mono or Stereo mode on unbalanced outputs Uses 12VDC power for easy use in mobile applications Specifications Mic input Z 600 ohm balanced Source input Z >10K ohms RCA Mic Max input -14dBV Max source input 24dBV Phantom Voltage 12VDC Max Gain: 60 dBV mic Max Gain: 24 dBV/Channel source Muting 60dBV Power 12VDC 100Ma. Size: 6.5 x 1.5 x 5 (W x H x D) Weight: 2 lbs (.8Kg)
