MixMate 2 Mic/Source Mixer

รายละเอียด

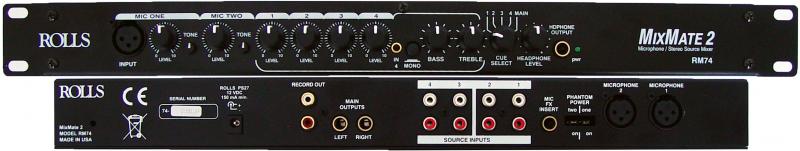

RM74 Party Mix Mate II The RM74 MixMate 2 is six channel, single rack space, electronic audio mixer with two microphone inputs and four stereo line inputs. The unit is ideal for installs such as small restaurants or night clubs where space is a consideration, without compromising audio quality. A convenient front-panel 3.5mm jack has been included for connection to any standard MP3 player's earphone output.   RM74 Party Mix Mate II Two XLR Microphone Inputs (including a paralleled front panel input). Individually switchable phantom power. Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5mm. Cue Select Switch. Stereo RCA Record Output. 1/4" TRS Mic Insert jack. Specifications Input Impedance: Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA Mic Insert: 22K Ohms 1/4" TRS insert Weight: 5 lbs. (2.3 kg) Size: 19" x 1.75" x 4" (48.3 x 4.5 x 10 cm) S/N Ratio: 96 dB Max Gain: Mic: 60 dB Source: 26 dB Tone Controls: +/-12 dB 100 Hz Bass, +/-12 dB 11kHz Treble Noise Floor: - 80 dB, THD: <.025% Output Impedance: 51 Ohms Output Level: +17 dBV max Phantom Power: +12 VDC In/Out Connectors: 3: XLR, 5: Stereo RCA, 4: 1/4" TRS, 1: 3.5mm Headphone Output Impedance: > 8 Ohms Max Input Level: Mic: -14 dBV Mic level Source: 24 dBV Current drain 50ma nominal no signal 15vdc
