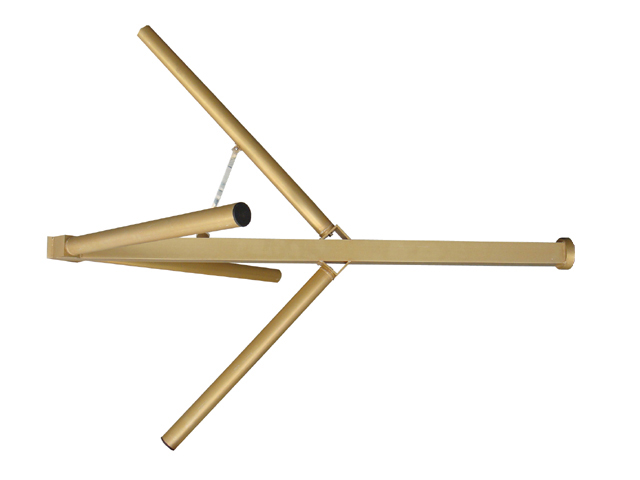

OMB HGP-WB Antennas

รายละเอียด

The HGP-WB antennas is designed to maitain a continue power of 5000W per element. The widr band antenna is made of Alodine aluminium,So it can work in extremely hard environmental conditions without changes in its technical features. It is only supplied as 4 0r 6 bay system.   TECHNICAL SPECIFICATIONS FREQUENCY RANGE    87,5 ~ 108MHz IMPEDANCE              50 Ω MAX. POWER            5000W POLARIZATION         Circular GAIN                        -1.5dB INPUT CONNECTOR    7/8’’ WEIGHT                    13 Kg. DIMENSIONS             1520x1240x1150mm MATERIAL                Aluminum Alodine TYPICAL V.S.W.R.     <1,4:1
