By pkctech.co.th
| Brand |
OMB |
| Type |
Antennas |
|
ชื่อ
|
-
SGP-1
- 0.00 ฿
-
SGP-2
- 0.00 ฿
-
SGP-2R
- 0.00 ฿
-
SGP-4
- 0.00 ฿
-
SGP-4R
- 0.00 ฿
-
SGP-6
- 0.00 ฿
|
| Buy |
More Info
|
รายละเอียด

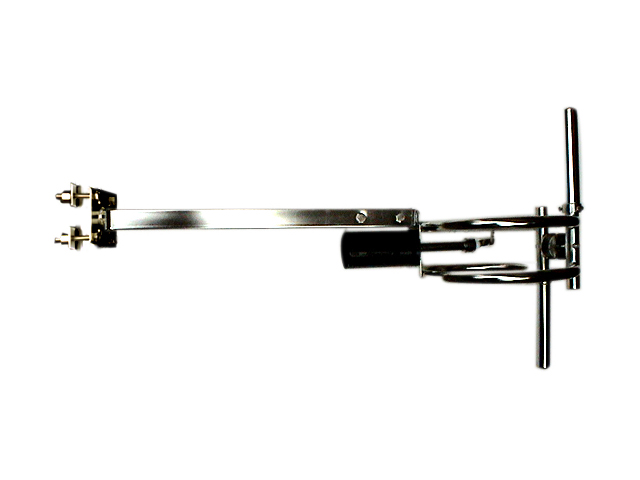

The SGP antenna is designed to maintain a continuous power of 4000W. This antenna is specially recommended for radio stations that need a cost-effective and high-efficiency solution. It is made of stainless steel, so it can work in extremely hard environmental conditions without changes in its technical features. The inner part of the SGP is made of silver-plated brass. The antenna is supplied (factory-adjusted) in the frequency required by the customer (87.5 ~ 108MHz). Anyway, the frequency can be changed later under customer request.
TECHNICAL FEATURES
FREQUENCY RANGE 87,5 ~ 108MHz IMPEDANCE 50Ω MAXIMUM POWER 4.000W POLARIZATION Right-circular INPUT CONNECTOR EIA 7/8'' WEIGHT 4.98Kg MOUNTING 1 ~ 3'' tubes MATERIAL Stainless steel TYPICAL VSWR 1.09 : 1
