Panel Mount Wattmeters

รายละเอียด

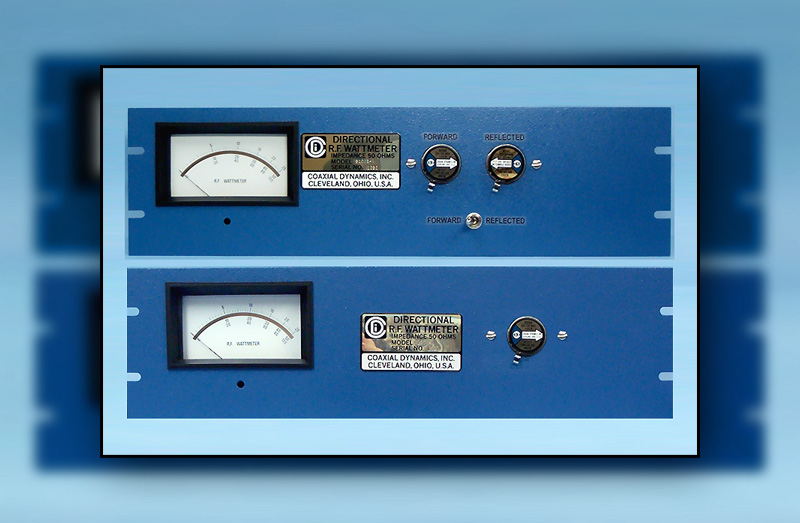

Panel Mount Wattmeters       Features     4-1/2" Mirrored Scale   Built-in 7/8" Line Section   Standard EIA 19" Panel Width   Uses Standard Gold Plated Two Year Limited Warranty   Description   The Coaxial Dynamics series of Panel Mount Wattmeters are designed to measure RF power in 50-Ohm coaxial cable and transmission lines, and accept plug-in elements in the range of 100 mW to 10 kW full scale, and from 0.45 to 2300 MHz. Complete with a built-in line section, our Quick Match RF connectors for 50-Ohm cables and transmission lines offer the speed and reliability you expect from Coaxial Dynamics. Several different models are available in either single socket or dual socket line sections. The Panel Wattmeter can be installed up to 200-feet from the Line Section with the permanently attached DC cables (10-foot normally supplied). Your confidence in the quality and dependability of these Panel Meters is assured with the Coaxial Dynamics Two Year Limited Warranty.   Available Models (5/10/25 Scales) Model 81002-A 19" Panel with single meter, FWD/RFL switch and 7/8" Dual Socket Line Section. Model 81003-A 19" Panel with single meter and 7/8" Single Socket Line Section. Model 81006-A 19" Panel with dual meters and 7/8" Dual Socket Line Section. Model 81017-A 19" Panel with single meter and 7/8" Single Socket Line Section. Has the added feature of an A/B switchable DC input providing the option of single meter measurement of several power sources.
