Phantom Hex 6 Ch Phantom Power

รายละเอียด

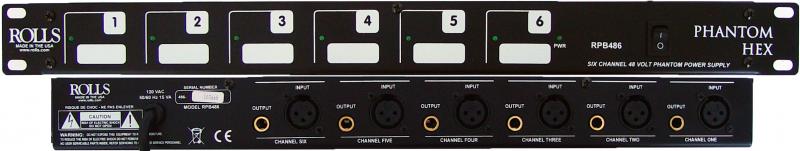

RPB486 Phantom Hex The RPB486 powers up to 6 condenser microphones with 48 volts of ultra clean phantom power. The outputs are 1/4" Tip-Ring-Sleeve balanced for easy connection to a digital multi-track recorder. To eliminate the possibility of any DC voltages, the RPB486 features pull-down resistors and isolation capacitors on all outputs.   RPB486 Phantom Hex XLR Input, 1/4" TRS Balanced Output. +48 Volt Regulated Phantom Power. LED "In Use" Indication. Perfect for digital multitrack use. Specifications Connectors: 6: XLR female jacks (pin 2 hot), 6: 1/4” TRS jacks (tip positive) Phantom Power Voltage: 48 Volts Max Phantom Power Current: 14 mA each channel Power Supply: Linear 120VAC 50/60Hz Size (W x H x D): 19” x 1.75” x 2.5” (48 x 4.5 x 12.7) Weight: 4 lbs.
