Phono Preamp

รายละเอียด

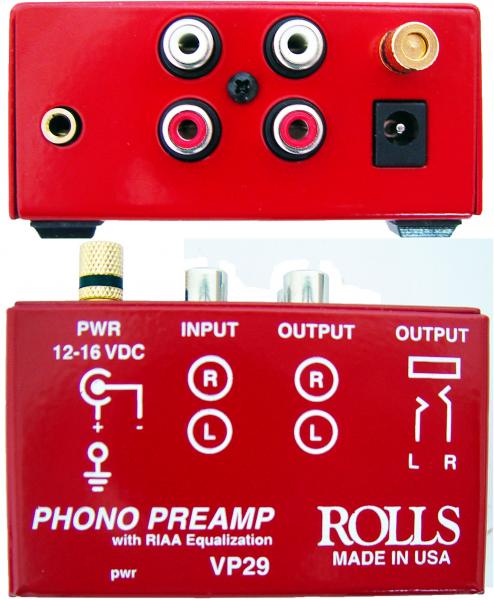

VP29 Phono Preamp The VP29 is a simple yet integral part of the vintage home audio enthusiast. It’s circuitry is designed not only to provide the RIAA equalization curve, but smooth and quiet operation.   VP29 Phono Preamp RIAA Equalization RCA inputs/outputs - 1/8 inch (3.5mm) TRS output. AC adapter included Specifications I/ O Connectors: RCA, 1/8 Input Sensitivity: 35 dBV gain @ 1kHz, 47k Ohms Input Z Input Capacitance: 5pf + cable capacitance Input Impedance: 50k Ohms Output Impedance: 1K Ohms Max Output Level: >10dB @ 1kHz at at 1% dist. Frequency Response: + / - 1.5dB 20 Hz - 20 kHz (Conforms to RIAA Equalization Curve) THD: .02% @ 1 kHz S/N Ratio: >80 dB unweighted PWR: 12 - 18 VDC Size: 3.25" x 2" x 1.5" Weight: 1 lb
