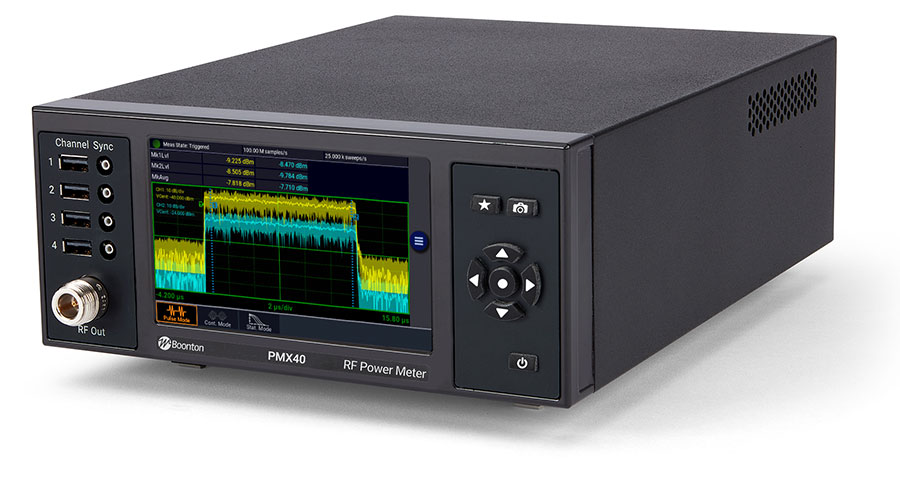

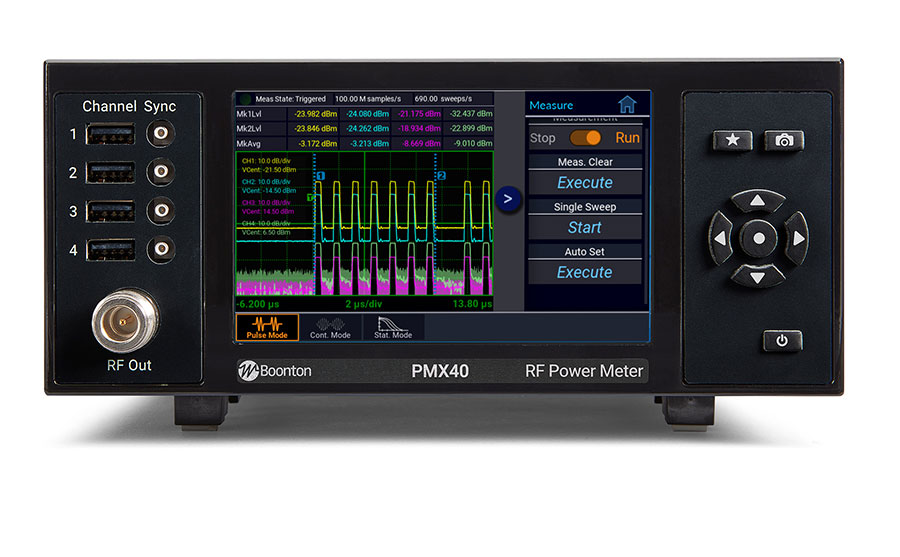

PMX40 RF Power Meter

รายละเอียด

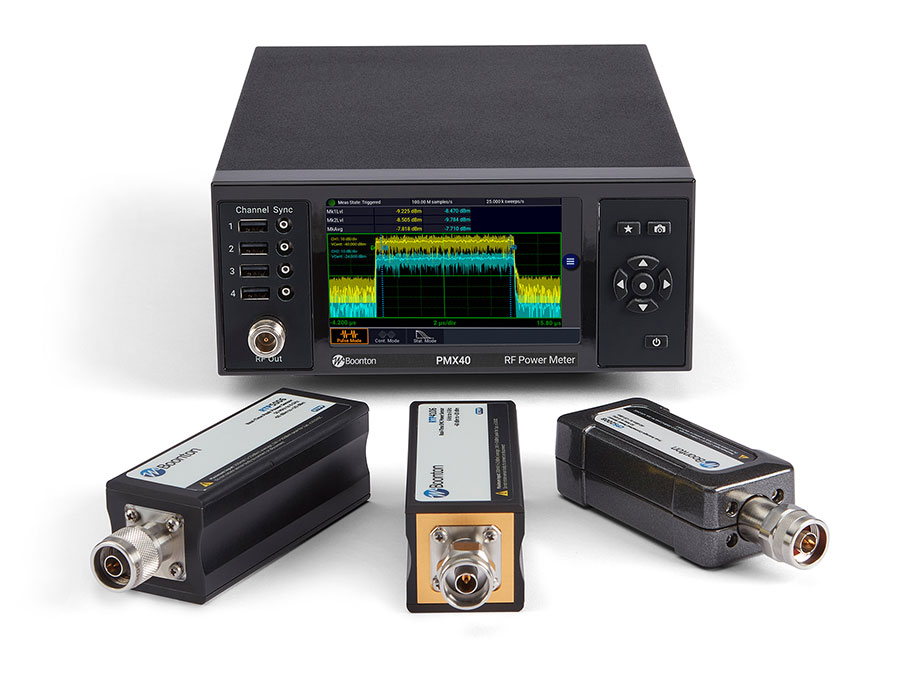

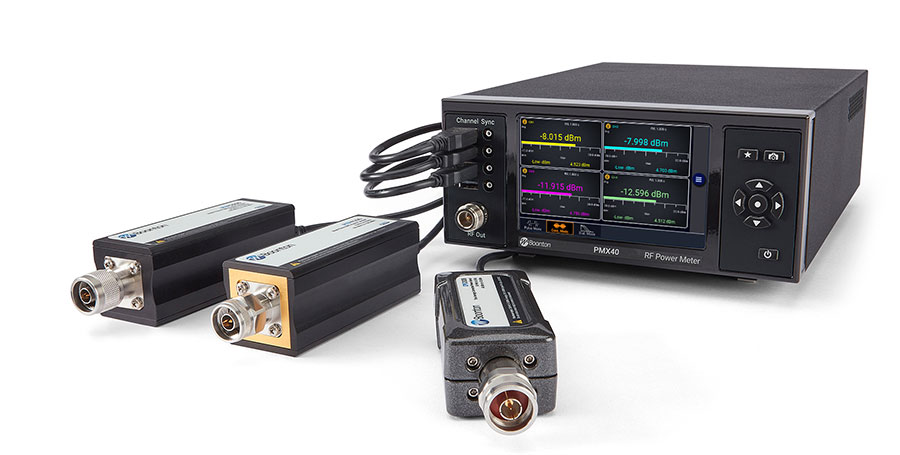

The PMX40 provides design engineers and technicians the utility of traditional benchtop instrument, the flexibility and performance of modern USB RF power sensors, and the simplicity of a multi-touch display built with Boonton award-winning technology. As a benchtop meter, the PMX40 provides a standalone solution for capturing, displaying, and analyzing peak and average RF power in both the time and statistical domains through an intuitive, multi-touch touchscreen display. The Boonton PMX40 RF Power Meter utilizes up to four Boonton  RTP  and  CPS  families of USB RF power sensors with industry-leading performance and capabilities either independently or for synchronized multi-channel measurements of CW, modulated, and pulsed signals. Providing the ultimate flexibility, the PMX40 sensors can be disconnected and independently used as standalone instruments. Quick Features Capture/display/analyze peak and average power Frequency range from 4 kHz to 40 GHz Industry-leading video bandwidth (195 MHz) and rise time (3 ns) Industry-leading 100,000 measurements per second Industry-leading time resolution as fine as 100 ps Synchronous multi-channel measurements (up to 4 channels) Sensors can be used as standalone instruments Product Information Datasheet PMX40 Instruction Manual PMX40 Programming Reference Guide Options
