Pro Mix IV

รายละเอียด

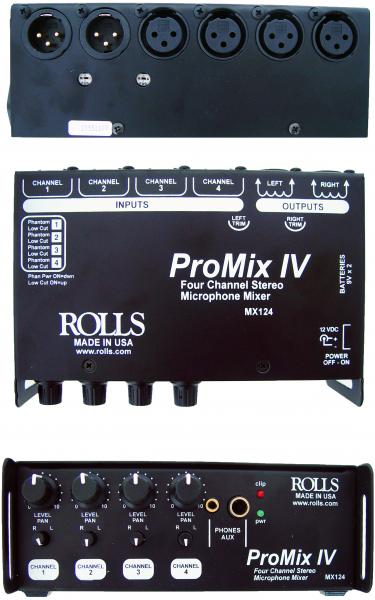

MX124 ProMix IV The MX5124 Pro-MixIV mixes 4 microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power, and Low Cut switches, a Level control, and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries.   MX124 ProMix IV Mixes four microphones to stereo XLR outputs. Output level controls for mic or line-level output. Transformer isolated outputs. Phantom Power and Low-Cut switches for each Mic input Battery and AC powered. 1/4" and 1/8" TRS stereo Phone/Aux Outputs Specifications Input Impedance: 600 Ohms Output Impedance: XLR 600 Ohms THD + Noise: .02% S/N Ratio: 84 dB Frequency Response: 25 Hz - 16 kHz (+0 / -3 dB) Max Output Level: + 14 dB Max Input Level: -14 dB Max Gain: +55 dB Low Cut: -3 dB @ 100 Hz Current Draw: 30 mA Phantom Power: +18 VDC Connectors: 4 Female XLR, 2 Male XLR, 1 1/4" TRS, 1: 1/8" (3.5mm) Power: 9V alkaline batteries X 2, DC Power Jack (5.5 X 2.1 mm tip negative) for Rolls PS27 (included) Size: 6.3"w x 3.7"d x 2.3" h Weight: 1.5 lbs.
