RTP5000 Real-Time Peak USB Power Sensors

รายละเอียด

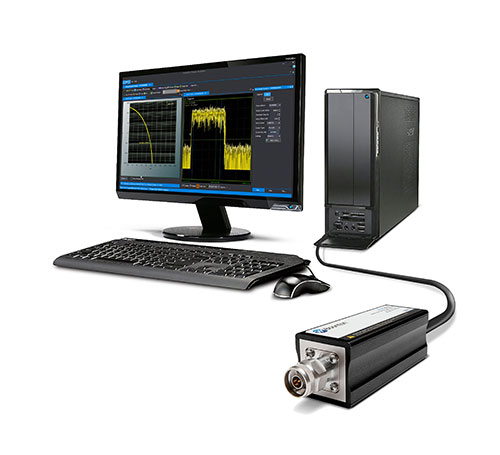

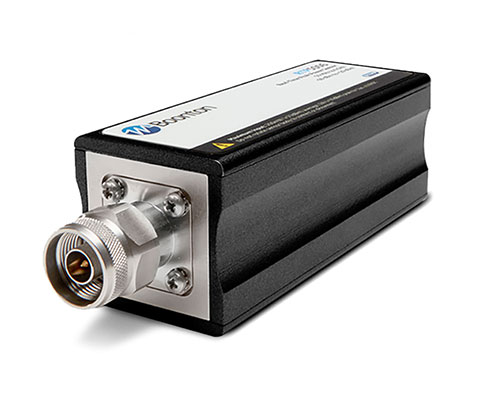

Providing the highest video bandwidth and fastest rise times, RTP5000 peak USB power sensors with Boonton’s  Real-Time Power Processing TM  deliver 100,000 measurements per second, no gaps in signal acquisition and zero measurement latency.  Combining this performance with automatic pulse measurements, CCDF and crest factor statistical analysis, multi-channel capabilities and documentation tools RTP5000 peak power sensors are the ideal instrument for fast, accurate and reliable RF power measurements. Quick Features 6 GHz, 8 GHz, 18 GHz and 40 GHz RF Power Sensors Up to 195 MHz video bandwidth with 3 ns rise time Real-Time Power Processing TM  technology with zero measurement dead time 100,000 measurements per second     Power Analyzer Suite advanced measurement and analysis software Crest factor, CCDF and statistical measurements 10 GS/s effective sample rate 100 MS/s continuous sample rate Synchronized multi-channel measurements Real-Time Power Processing TM Real-Time Power Processing TM  (RTPP) technology is a unique parallel processing methodology that performs the multi-step process of RF power measurement at incredible, unmatched speeds. While conventional power meters and USB sensors perform steps serially, resulting in have long re-arm times and missed data Boonton sensors with RTPP TM  capture, display and measure every pulse, glitch and detail with no gaps in data and zero latency. Product Information Datasheet Manuals & Software RTP5000 Uncertainty Calculator Sensor Selector Guide
