SGX1000 RF Signal Generators

รายละเอียด

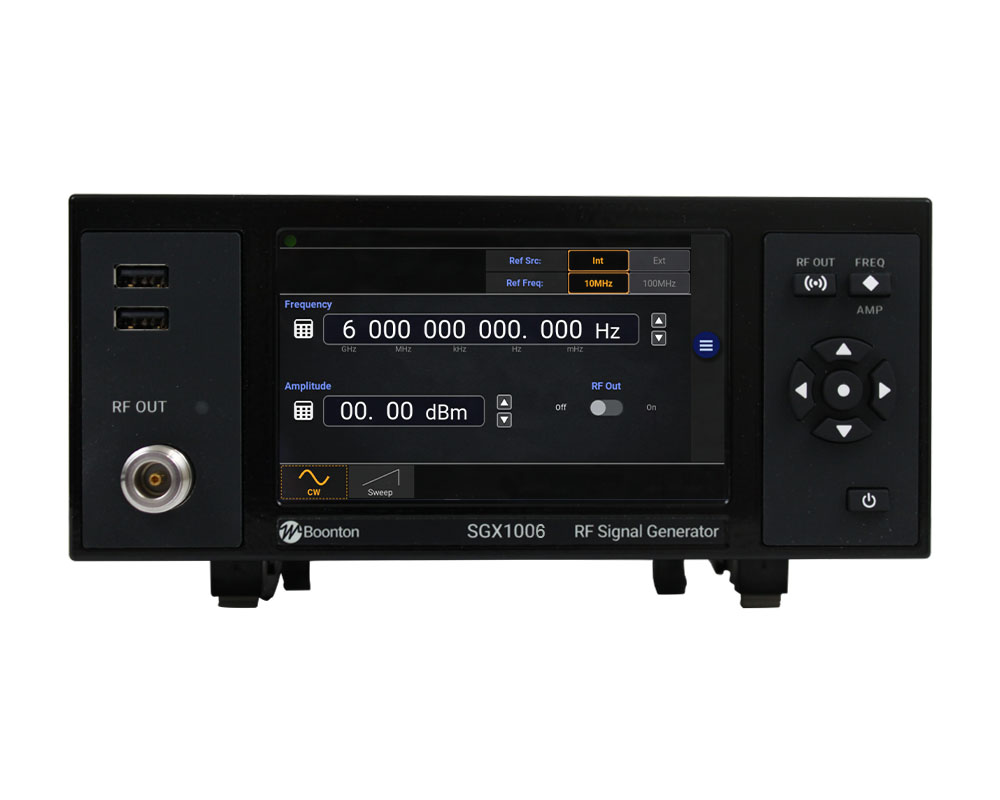

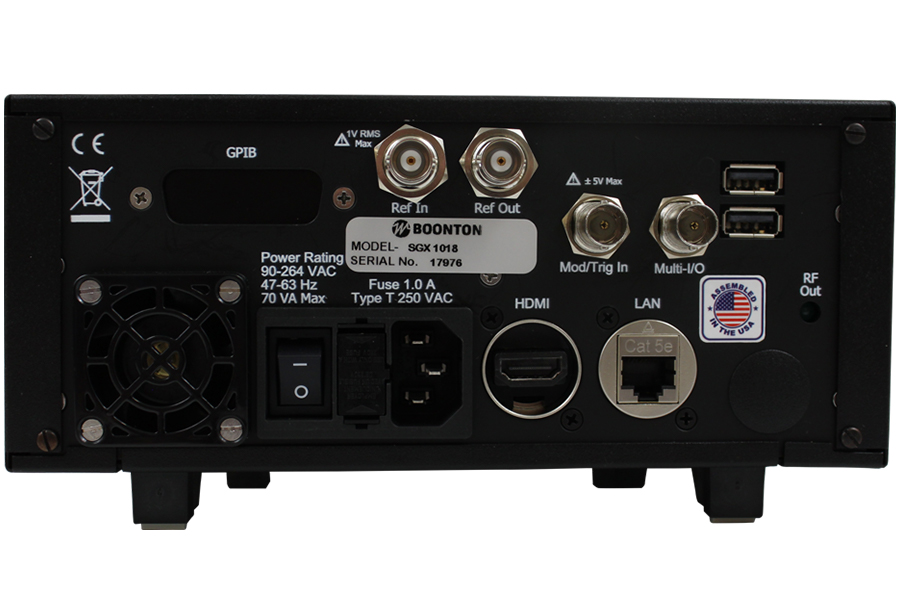

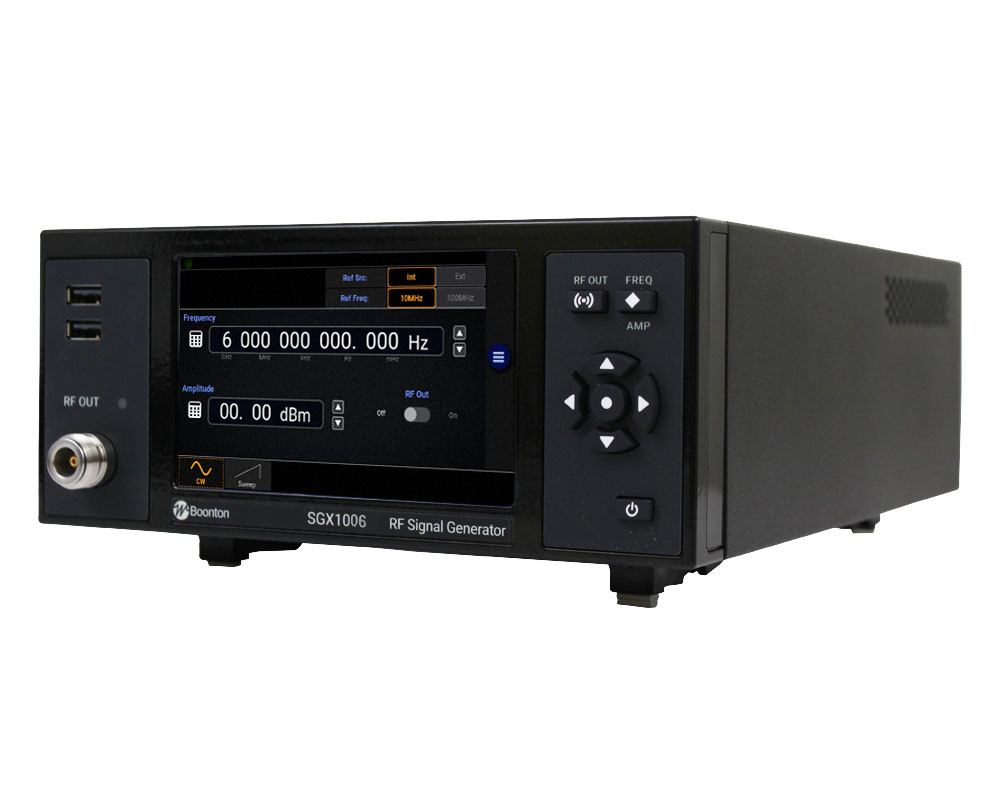

The SGX1000 series of RF signal generators offer high performance signal generation with an easy-to-use interface in a compact form factor. The SGX1000 utilizes a proprietary blend of direct digital and direct analog synthesis to provide ultra-fine frequency resolution, lightning-fast frequency switching, ultra-low phase noise and jitter, and superior reliability. The signal generator incorporates an intuitive, multi-touch display that enables easy access and configuration to perform frequency and/or power sweeps to address a wide variety of test requirements. Quick Features Frequency range: 10 MHz to 18 GHz Output power range: -50 to +18 dBm 10/100 MHz reference input Multi-touch, touchscreen Lightning fast - Switching speed: 200µs (typ) Ultra-low phase noise (3 GHz, 10 kHz offset) -122 dBc/Hz (typ) Ultra-low jitter: 60 fs (typ) Excellent amplitude accuracy (as low as -40 dBm): +/-0.5 dB (typ) Product Information SGX1003 & SGX1006 Datasheet SGX1018 Datasheet Manuals & Software
