Solidyne Codec

รายละเอียด

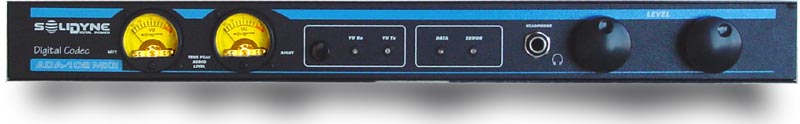

Coder - Decoder ADA102 Digital Audio Link TCP/IP   T he ADA102 is a digital audio streaming generator, working stand alone. Encoder receives a stereo audio signal (analog or digital)  turning it into a MP3 or PCM audio streaming, under different protocols (see specifications). The output coded TCP/IP is at a RJ45 connector, compatible with Ethernet networks, with direct connection to modem Through a front panel pushbutton, the ADA102 becomes Coder or Decoder. Some models need connection to PC to modify softw are. ADA102 at the same time manages Data signals using a RS-232 serial port. This allows to remote control from studios, the transmitter or the Digital audio processor. Or you can send the RDS info to the RDS coder near the transmitter   Four lines allows remote controlling On-Off devices, 2 lines are with relay. Then is easy to switch On-Off transmitters, change antennas, etc If the Internet signal fails, ADA102 immediately starts to reproduce a special emergency audio program. This program is recorded at the radio station using a typical Pen Drive memory. This program is able to last several hours. When Internet signal starts again, ADA102 stops the program ADA 102 Decoder, at the other end of the link, manages data stream coming through the Internet or by a microwave link 802.11.x, and convert it to audio signal. Audio is delivered analog balanced or digital stereo AES3, compatible with S/PDif.   The ADA102mpx  model includes a third type of output for direct connection to FM stereo transmitter; MPX  stereo multiplex. ADA102 is the world only digital link that converts AES 3 digital audio into a clean MPX signal, with a full digital audio quality   ADA102 Connections       High-precision MP3 encoding ADA102 handle the new encryption algorithm MPEG 1/2 layer 3 to arrive at standards of excellence. No encoder, operating on a PC, allows you to obtain the 7th degree level of quality (indistinguishable from the original for all ears and all programs.) These algorithms run into an internal high-speed DSP. Encoding at 192 Kbps (kilobits per second) with VBR technology (Variable Bit Rate), allows for a faithful and accurate reproduction of a recording session done at 24 bits @ 192 KHz. This is crucial to face the new FM digital HD radio . But it is also true that still using modern analog FM transmitters, the ADA102 links allows for the excellent sound quality that is always appreciated by the audience.
