EQ210 Stereo 10 Band Precision Rqualizer
Stereo equalization ขนาดเล็ก, กะทัดรัด
ควมคุมใน 10 ย่าน ความถี่ ตามมาตรฐาน ISO
เพิ่มหรือลด Gain ในแต่ล่ะช่องความถี่ได้ 12 dB
เพิ่มหรือลด Gain ของสัญญาณทั้งหมดได้ 12 dB
สวิตช์สำหรับ Bypass สัญญาณ
Stereo RCA and 1/8” (3.5mm) Input/Output jack

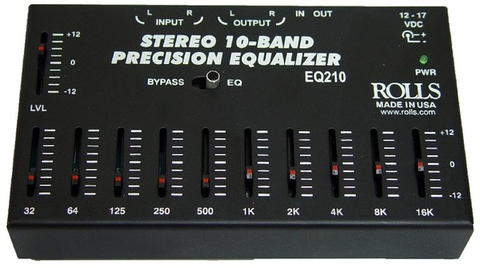

The EQ210 is a small graphic EQ that enables you to boost or cut the signal at 10 different frequency points.
The EQ210 is perfect for installations, and since it is stereo it’s great for use with desktop speakers, mixers and powered speakers, micpreamps, keyboards, computers and more.
EQ210
Stereo equalization
10 frequency controls on standard ISO centers
12 dB of signal boost or cut for each frequency level control
Overall Level control with 12dB of signal boost or cut
Active Bypass switch in the event of a power loss
Stereo RCA and 1/8” (3.5mm) Input and Output jacks
12 VDC power adapter included
Specifications
Input Impedance: 50K Ohms Nominal
Output Impedance: 100 Ohms
Max Input Level: +24 dBV
Max Output Level: +14 dB
Center Freq: +/-5% Standard ISO
Boost/Cut Range: +/- 12 dB
Bypass Switch: Active
Frequency Response: 20 - 20 kHz +/- 1 dBV
Dynamic Range: 95 dB A Weighted
S/N Ratio: 85 dB
Power: +/- VDC 150 mA (center neg.)
Size: 6.4 x 3.7 x 1.125 inches
Weight: 1 lb.
