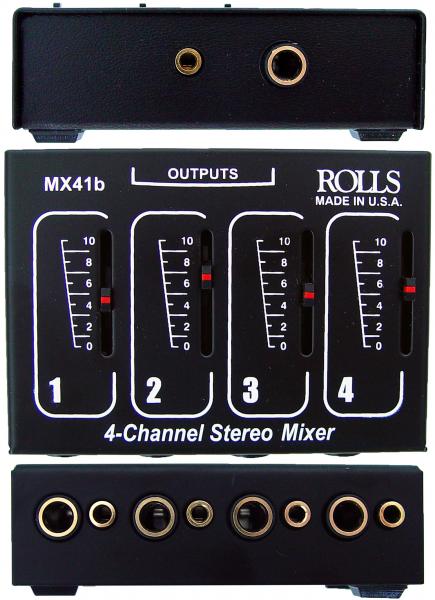

MX41b Four Channel Mixer
The MX41b is a stereo four channel passive mixer for expanding a console mixer, mixing instruments, CD players, cassette players, computers etc. It requires no batteries or other power source.
The unit may also be used as a 1 In 4 Out stereo splitter box when all controls are set to maximum.
MX41b Four Channel Mixer
Four Stereo 1/4" and 1/8" Inputs.
Stereo 1/4" and 1/8" Outputs.
100K Ohm Potentiometers.
Specifications
8 Stereo Inputs: 4: 1/4" and 4: 1/8"
Stereo 1/4" and 1/8" Outputs.
Input Impedance: 10K to 47K Ohms
Output Impedance: 2.5K to 10K Ohms
Gain: -12 dB MAX
Dimensions: 3.6" x 2.7" x 1.42" (W x H x D)
Weight: 1 lb.
