Stereo Power Amp 35 Watt/CH

รายละเอียด

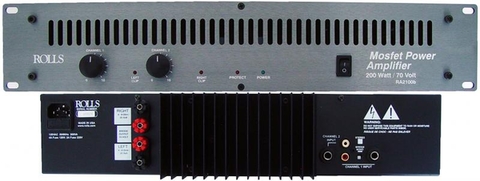

RA2100b Professional Power Amp The RA2100b is a stereo 100W/channel RMS power amplifier in a standard 2 rack space format. It is intended for professional audio and distributed musical applications. The unit features 100 Watts per channel RMS into four ohms, 85 Watts per channel into eight ohms, and for the contractor - 70 Volts / eight ohms. The unit also features MOSFET drivers in a voltage and current gain circuit and a one-second input turn-on delay. The RA2100b will drive 25 Volt speaker lines directly from each channel, or 70 Volt lines bridged.   RA2100b Professional Power Amp 100 Watts RMS per output (4 Ohm). 85 Watts RMS per output (8 Ohm). 200 Watts RMS into 70 Volt (8 Ohm). 1/4" and RCA inputs. Fault Protected Output Stage. Specifications Power Output, Stereo: 100 Watts RMS/ch. 4 Ohms, 85 Watts RMS/ch. 8 Ohms Bridged: 200 Watts into 70 Volt or 8 Ohms Minimum Load Impedance: 4 Ohms (8 Ohms bridged) Sensitivity: <1 VRMS for full output THD: <.05% (500 Hz @ 1 Watt) IMD: <.05% S/N Ratio: >95 dB A Weighted Power Bandwidth: 70 - 30 kHz +/- 3 dB Damping Factor: >150 Slew Rate: 100 V/microSecond Phase Shift: <10 Deg., 20 Hz - 20 kHz Input Impedance: 10 K Ohms balanced Power: 120 VAC 60 Hz 2.5A, 230 VAC 50 Hz Size: 19" x 3.5" x 7.5" (48 x 9 x 19 cm) Weight: 12 lbs (5.5 kg)
