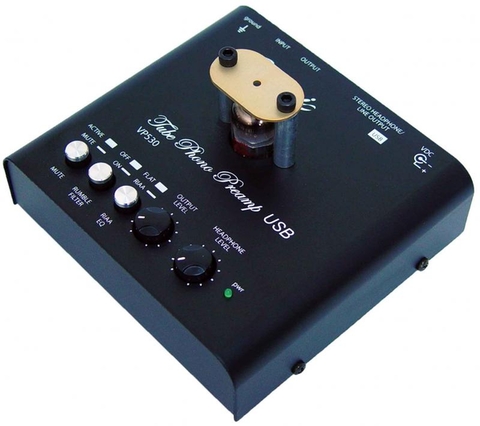

VP530 Tube Phono Preamp USB
The VP530 is designed to amplify an RIAA equalized phono signal to a Hi-Fi level signal, and is intended for magnetic pickups.
Since the unit utilizes tube circuitry, the resulting output signal is more warm and musical than solid state preamplifiers.
Feature
All Tube Circuitry
RIAA Equalization
Headphone / Stereo Line Output
Individual Output Level Controls
Rumble Filter
Mute Switch
USB output
Specifications
I/O Connectors: RCA, 1/4" TRS Stereo, USB
Input Sensitivity: 30 dB gain @ 1kHz, 47k ohms Input Z
Input Impedance: 50k ohms
Output Impedance: 8 ohms Headphone, 100 ohms RCA
Max Output Level: >10dB @ 1kHz at at .1% dist.
Equalization: RIAA +/- 1.5 dB, 20Hz to 20kHz
Rumble Filter: 20Hz
THD: .02% @ 1KHz
S/N Ratio: >80 dB unweighted
Indicator: 1 Power LED
Size: 6"w x 2.5"h x 5.4"d
Weight: 2 lb
